5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
產品名稱： 路燈燈體
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
防水指數：IP66 IP67
抗震指標：IK08 IK09
工作溫度（℃）：-20-60
表面顏色：深灰、淺灰、黑色、定制等
Contain Accessories : Complete finished street lights
產品特點
- 鋁製機身由ADC12鋁壓鑄而成，表面經過噴漆處理以防止腐蝕和顏色持久性。
- 大面積散熱鰭片設計，快速理論有利於冷熱空氣之間的對流，保持燈具良好的散熱效果，增加燈具的使用壽命。
- 電源盒，保持燈具完整統一。
- 通風設計，防塵防積水，實現燈具長壽命。

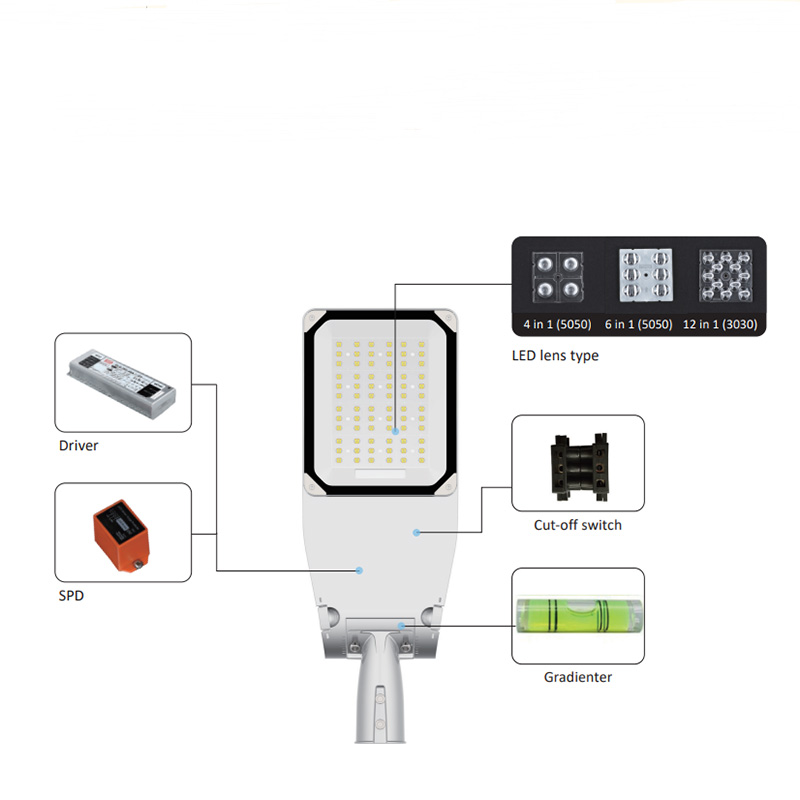

Product Details

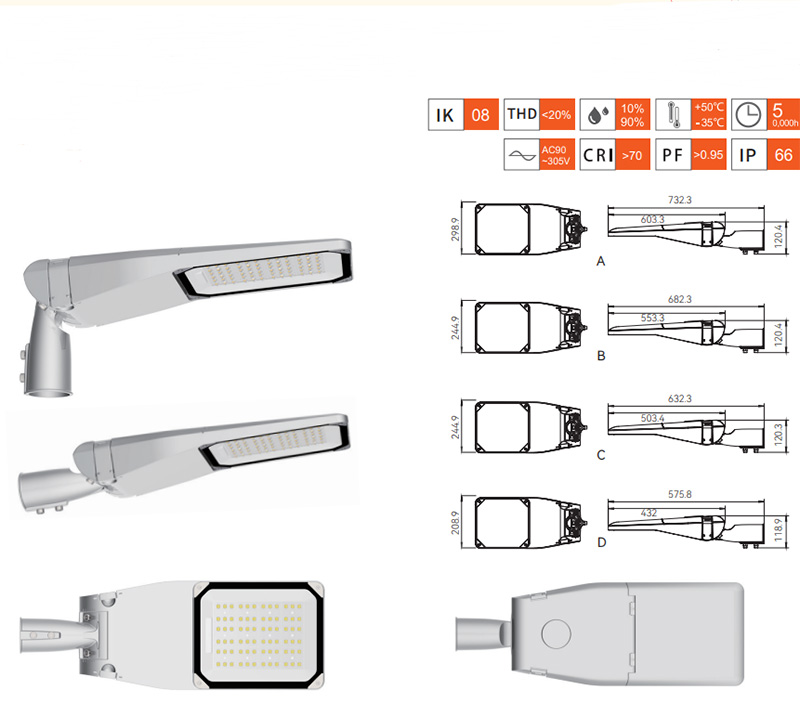

Product Size Chart
規格尺寸
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| 瓦數 | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| 平均流明 | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| 晶片品牌 | LUMILEDS/CREE/三安 | LUMILEDS/CREE/三安 | LUMILEDS/CREE/三安 | LUMILEDS/CREE/三安 |
| 驅動器品牌 | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| 功率因數 | >0.95 | >0.95 | >0.95 | >0.95 |
| 電壓範圍 | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| 絕緣等級 | 一類/二類 | 一類/二類 | 一類/二類 | 一類/二類 |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃至50℃) | (-35℃至50℃) | (-35℃至50℃) | (-35℃至50℃) |
| 防護等級 | IP66 | IP66 | IP66 | IP66 |
| IK類 | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000小時 | >50000小時 | >50000小時 | >50000小時 |
| 材料 | 壓鑄鋁 | 壓鑄鋁 | 壓鑄鋁 | 壓鑄鋁 |
| Photocell base | With | With | With | With |
| 安裝插口 | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
深圳市EKI燈飾實業有限公司是鋁壓鑄 LED 燈外殼的製造商，擁有我們自己開發的各種設計和技術。
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
